Fig. 9


Download original image

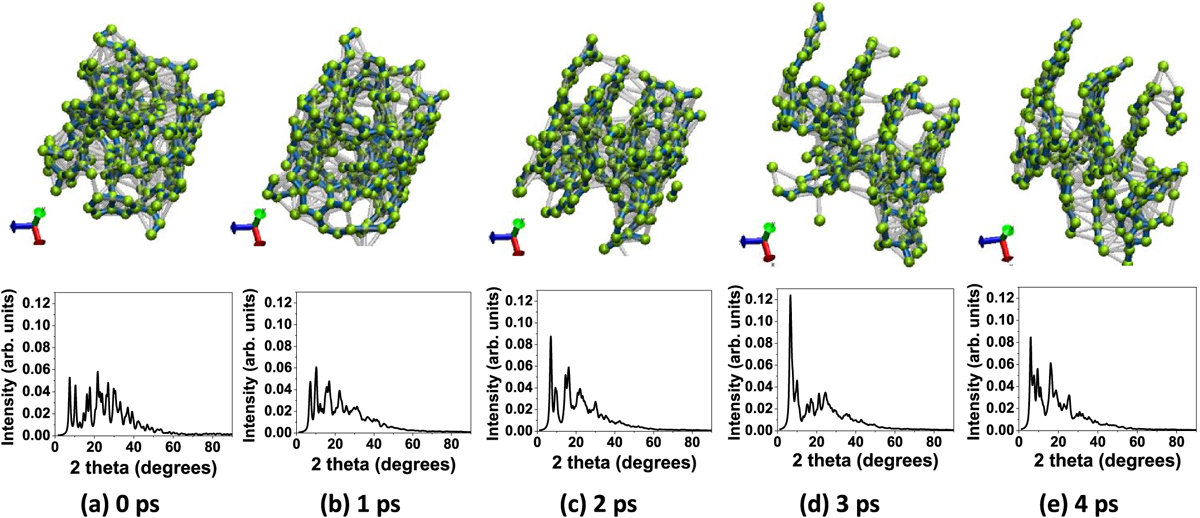

(Top raw) Snapshots of amorphous carbon after the FEL pulse irradiation corresponding to the absorbed dose of 0.8 eV/atom, photon energy of 92 eV, and FWHM pulse duration of 30 fs. Reproduced from reference [88]. (Bottom raw) Powder diffraction patterns for the corresponding atomic structures obtained with X-ray photons of 1.54 Å.
