Figure 1
Download original image

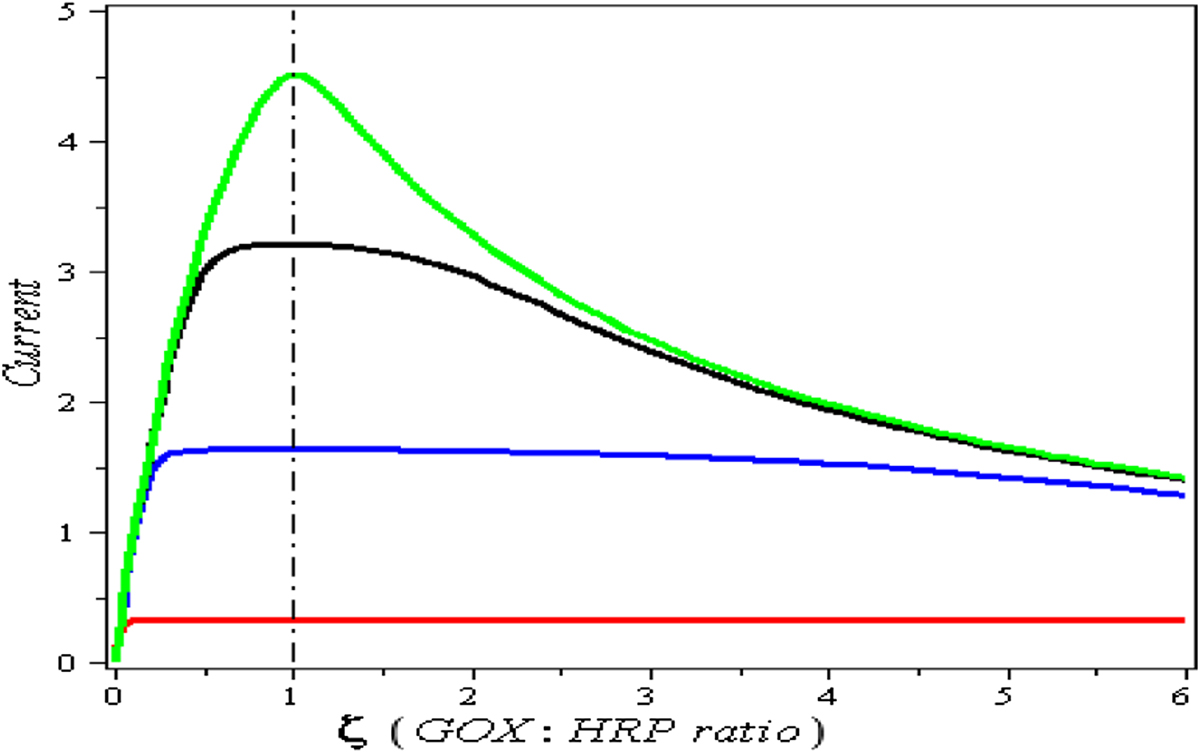

Dependence of current on ζ. s 0 = 1 (red), 5 (blue), 10 (black) and 20 (green) mM, k 1 = 102, k −1 = 10−1, k 2 = 10, k 3 = 102, k −3 = 10−1, k 4 = 10, e 0 = 10−5, l = 2 × 10−4, D 1 = 6.7 × 10−10 and D 2 = 8.8 × 10−10.
